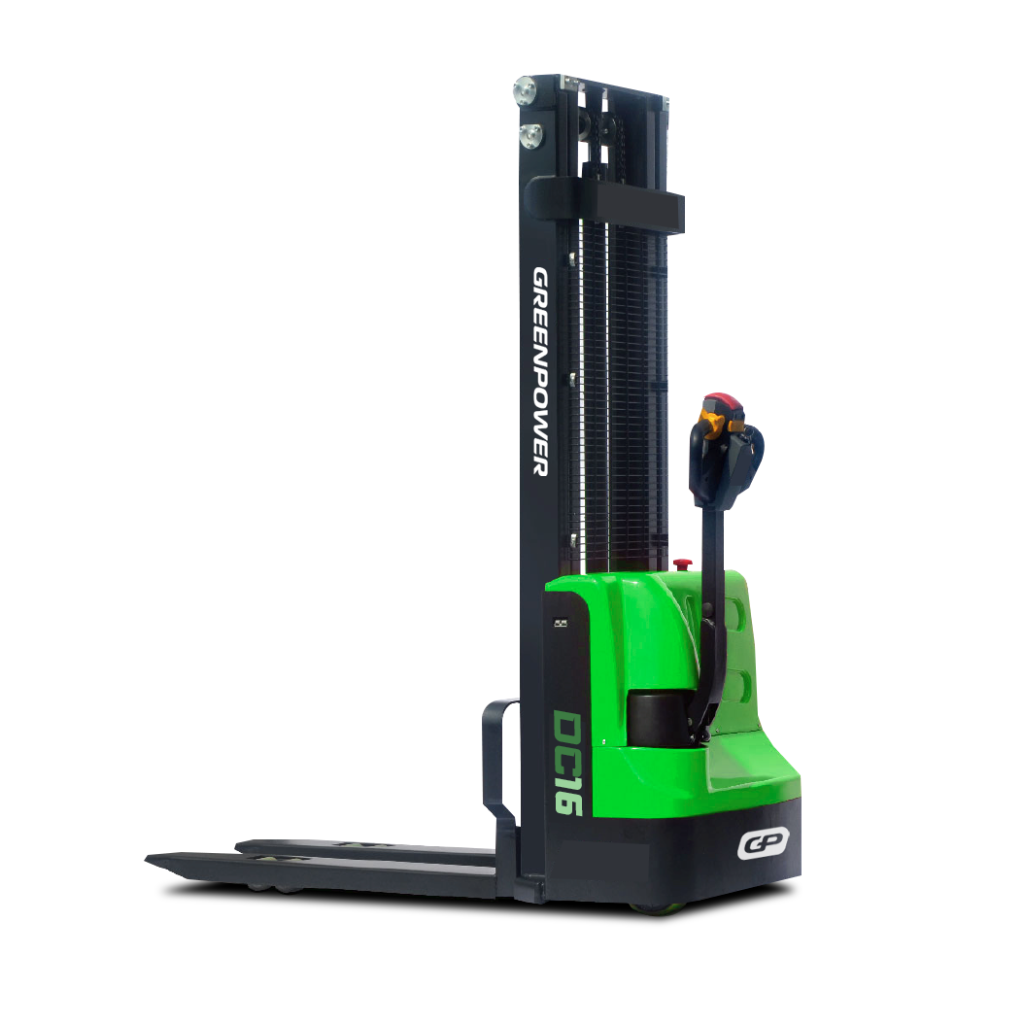

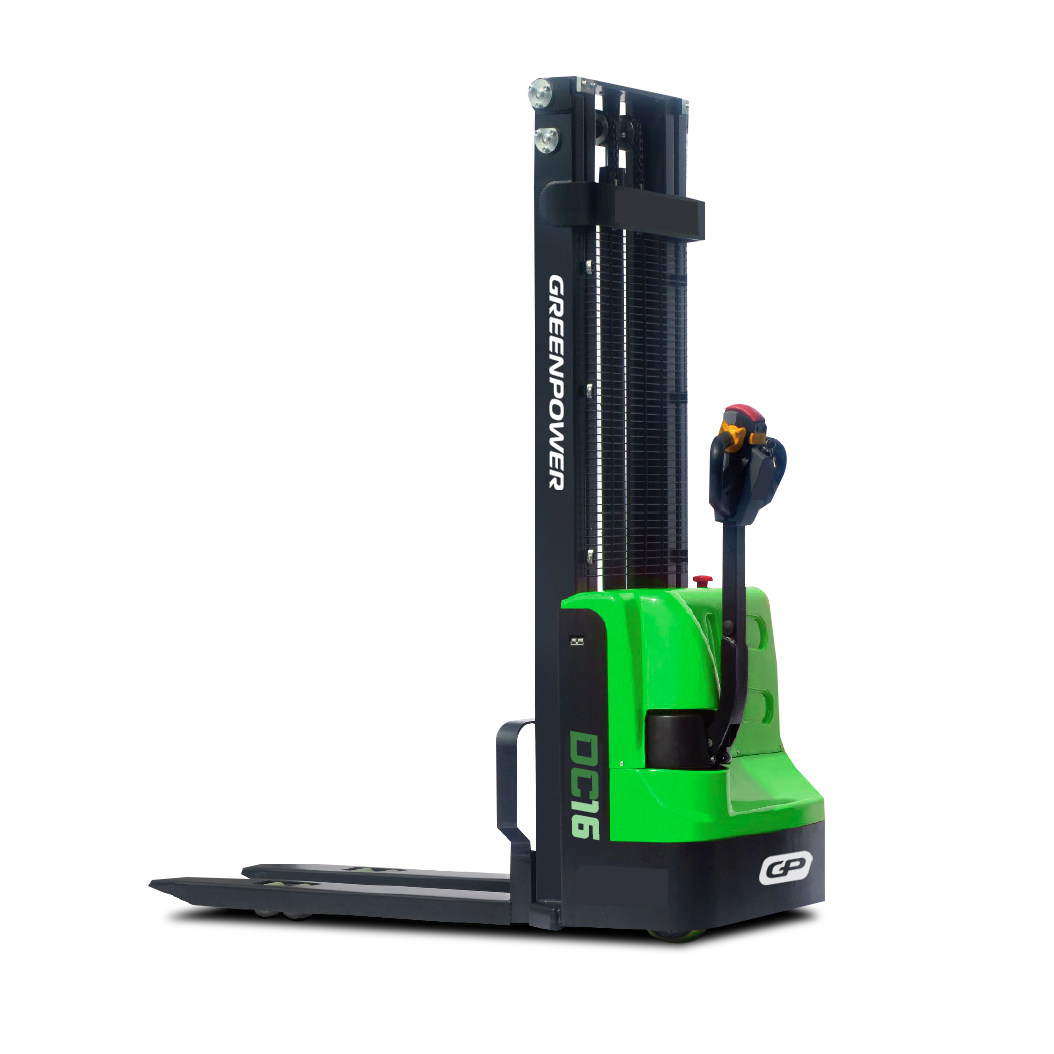

Greenpower CDD16J-LI | fully electric pallet Stacker | 4.0m Lift height | Capacity 1600kgs.
Purchase from
£3,999
+VAT
£4,799
inc VAT
1.6 Tonne Lithium Pallet stacker Truck
- The high-power lifting pump allows better productivity.
- Thanks to the position of the drawbar, the turning radius is very small and offers good visibility
- Driving system with magnetic motor, small volume, light and energy efficient.
- The drawbar elements, designed in Germany, can withstand many conditions of use such as cold, humidity and dusty environments.
- The 4-color LED lights make the stacker easy to operate with.
- The external charger has better cooling performance.
- The drawbar integrates all the necessary controls with an ergonomic layout.
- Maintenance-free battery.
- Fork length – 1150mm
- Fork width - 160mm
- Fork Spread – 570mm
- Middle Gap between Forks – 250mm
- Fork Depth – 60mm
1.6 Tonne Pallet stacker Truck
- The high-power lifting pump allows better productivity.
- Thanks to the position of the drawbar, the turning radius is very small and offers good visibility
- Driving system with magnetic motor, small volume, light and energy efficient.
- The drawbar elements, designed in Germany, can withstand many conditions of use such as cold, humidity and dusty environments.
- The 4-color LED lights make the stacker easy to operate with.
- The external charger has better cooling performance.
- The drawbar integrates all the necessary controls with an ergonomic layout.
- Maintenance-free battery.

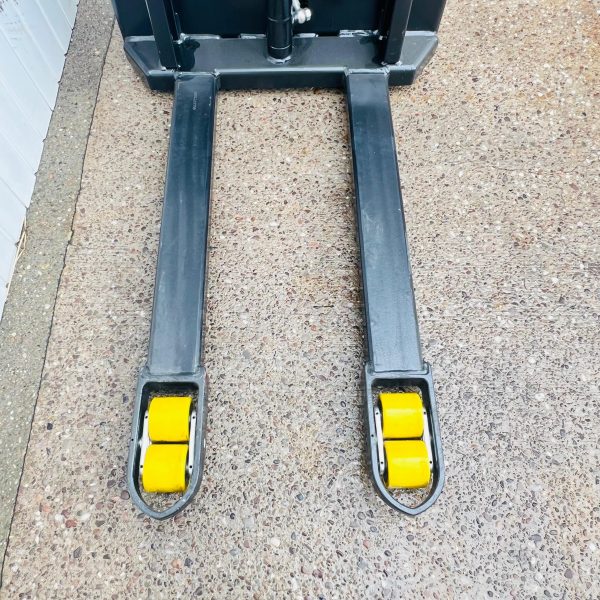

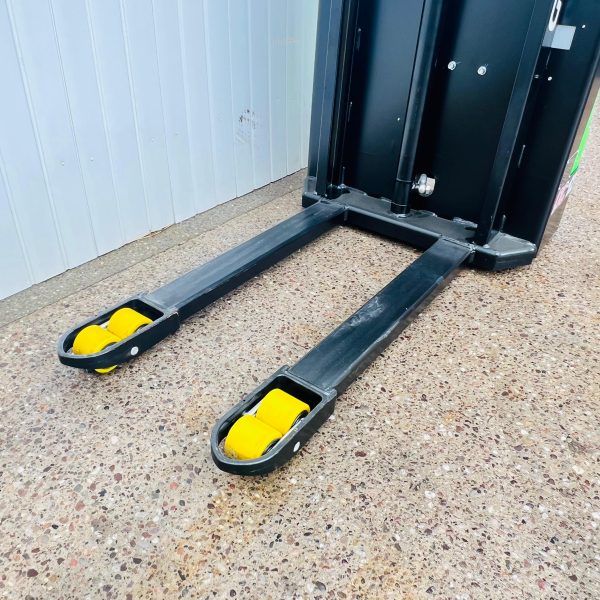

Fork specifications
- Fork length – 1150mm
- Fork width - 160mm
- Fork Spread – 570mm
- Middle Gap between Forks – 250mm
- Fork Depth – 60mm
Lifting Capacity’s Below:
- 3500mm Lift height –  600kgs
- 3000mm Lift height – 750kgs
- 2500mm Lift height –  900kgs
- 2000mm Lift height – 1050kgs
- 1500mm Lift height – 1200kgs
- Specifications
- Features
| Manufacturer | Greenpower |
|---|---|
| Model | CDD16J-LI |
| Year of Manufacture | 2026 |
| Fuel Type | Lihtium electric |
| Side Shift | No |
| Capacity | 1200kgs |
| Lift Height | 4000mm |
| Mast Type | 2 Stage |
| Closed Mast Height | 2240mm |
| Health & Safety | 12 months loler supplied |
| Dimensions (L x W) | 1603 X 685 |
| Additional Info | Load capacity: 1600kg Fork Dimensions: 60*160*1150mm. Overall Length Face to forks: 605mm Overall width – 795mm 570mm Fork spread 2 Stage Duplex Mast type. Turning Radius (min) : 1336mm. Aisle width for pallet 1000 x 1200 crossways : 2068mm Aisle width for pallet 800 x 1200 lengthways : 2034mm Max Gradeability Laden/unlanden : 3/8% service weight (inc battery) : 450kgs |
| Truck Warranty | 12 month truck warranty : Subject to status. |
| Battery Warranty | 12 months |
| Battery Spec | 24v/80ah |
- The ‘manual release of electromagnetic brakes.
- PU wheels
- charged in 3-hours.
- Continuous working time of 3 hours
- Simply charged with a 3-pin plug (24v).
- The battery has a 2,000-battery life cycle
Fork specifications
- Fork length – 1150mm
- Fork width – 160mm
- Fork Spread – 570mm
- Middle Gap between Forks – 250mm
- Fork Depth – 60mm
- Load capacity: 1600kg
- Fork Dimensions: 60*160*1150mm.
- Overall Length Face to forks: 605mm
- Overall width – 795mm
- 570mm Fork spread
- 2 Stage Duplex Mast type.
- Turning Radius (min) : 1336mm.
- Aisle width for pallet 1000 x 1200 crossways :Â 2068mm
- Aisle width for pallet 800 x 1200 lengthways : 2034mm
- Max Gradeability Laden/unlanden : 3/8%
- service weight (inc battery) : 450kgs
This stacker will only work with pallets that are open ended will work with Euro pallets – This is not suitable for Closed ended pallets – if this are closed please go to the ES12-25DM Straddle stacker.
-
